Product introduction

Item name:Tungsten alloy ring
Material:W-Ni-Fe, W-Ni-Cu
Standard:ASTM-T-21014/ASTM B 777-07
Packaging:Plywood wood case
Application:Balance industrial
Brand name:XIAMET
Place Of origin:China
Inquiry us:sales@sxxinheng.com
Product details

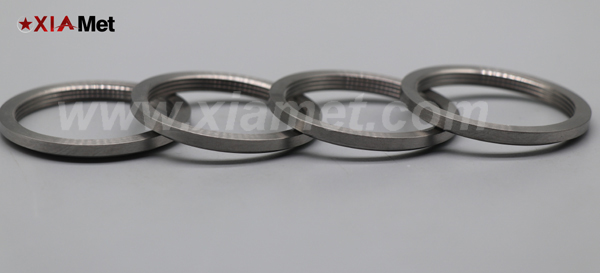

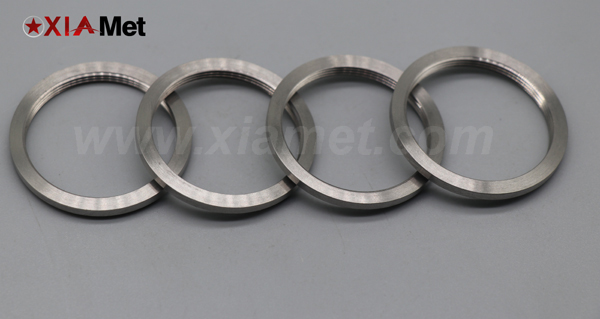

Tungsten Alloy Ring

1, Diameter: 30-500mm
2, Thickness: 2-30mm
3, Length: 50-1000mm
4, Density: 15.8-18.75 g/cm3
5, Composition: W content: 85-99%, W-Ni-Fe, W-Ni-Cu
6, Application: Tungsten alloy rings are successfully used as heavy industry parts, especially, tungsten heavy alloy could be

widely made as jewelry because of its wearing resistance. It is widely used in weight or balance industrial.The product

offered by us is qualified.

Tungsten Alloy Data Sheet

Type

Density (g/cm³)

Tensile strength (MPa)

Elongation

Hardness (HRC)

85W-10.5Ni-4.5Fe

15.8-16.0

700-1000

20-33

20-30

90W-7Ni-3Fe

16.9-17.1

700-1000

20-33

24-32

90W-6Ni-4Fe

16.7-17.0

700-1000

20-33

24-32

91W-6Ni-3Fe

17.1-17.3

700-1000

15-28

25-30

92W-5Ni-3Fe

17.3-17.5

700-1000

18-28

25-30

92.5W-5Ni-2.5Fe

17.4-17.6

700-1000

25-30

25-30

93W-4Ni-3Fe

17.5-17.6

700-1000

15-25

26-30

93W-4.9Ni-2.1Fe

17.5-17.6

700-1000

15-25

26-30

93W-5Ni-2Fe

17.5-17.6

700-1000

15-25

26-30

95W-3Ni-2Fe

17.9-18.1

700-900

8-15

25-35

95W-3.5Ni-1.5Fe

17.9-18.1

700-900

8-15

25-35

96W-3Ni-1Fe

18.2-18.3

600-800

6-10

30-35

97W-2Ni-1Fe

18.4-18.5

600-800

8-14

30-35

98W-1Ni-1Fe

18.4-18.6

500-800

5-10

30-35

90W-6Ni-4Cu

17.0-17.2

600-800

4-8

25-35

93W-5Ni-2Cu

17.5-17.6

500-600

3-5

25-35

Note: The specification and composition of tungsten alloy tube can be self-defined by customer
