Product introduction

Item name:W70Cu30 bar/rod
Material:industrial, heat elements, heat shields, etc
Standard:ASTM B 702
Packaging:plywood case
Application:Industrial, heat elements, heat shields,
Brand name:XIAMET
Place Of origin:China
Inquiry us:sales@sxxinheng.com
Product details

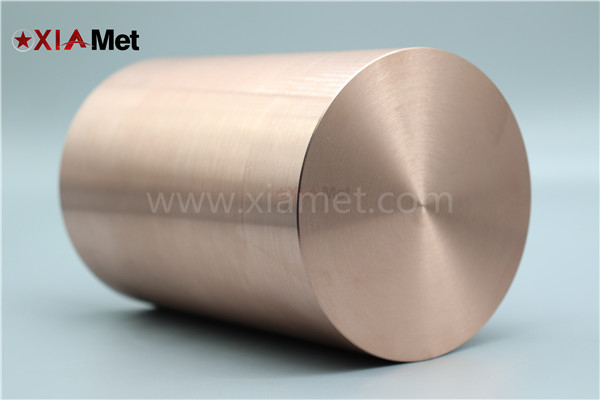

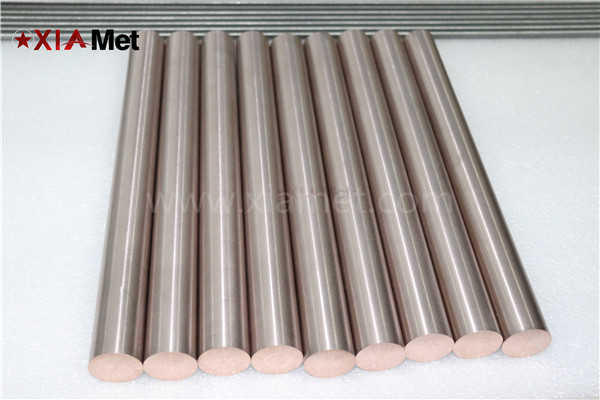

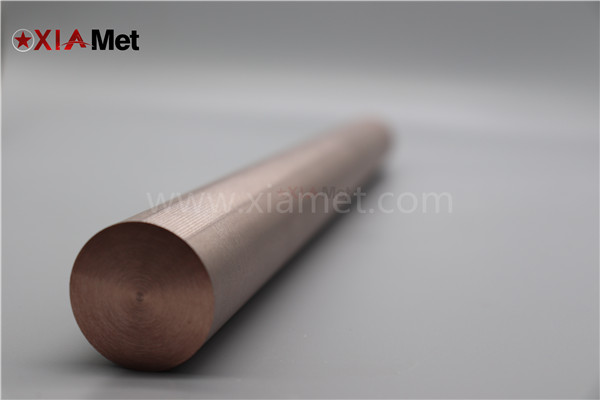

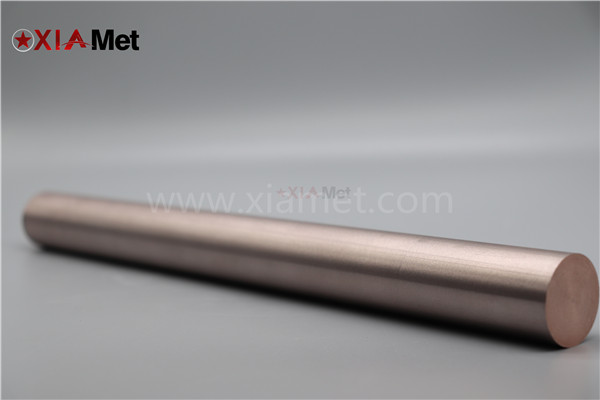

Tungssten copper rods

 Specifications:

1) Materials: W30Cu, W50Cu, 70%W/Cu, 75%W/Cu, 80%WCu, 90%WCu
2) Technique: infiltering process
3) Density of tungsten copper:15.5~18.0g/cm3
4) Shape: Plate,sheet,strip,tube,rod,or machined parts
5) Standard: ASTM B702



tungsten copper alloy plate

Code No. Chemical Composition % Mechanical properties
CU Impurity W Density   RES( cm)
(g/cm) Hardness Conductivity TRS/ Mpa
  HB IACS/ %

CuW(50) 50+2.0 0.5 Balance 11.85 115 3.2 54
CuW(55) 45+2.0 0.5 Balance 12.3 125 3.5  49
CuW(60) 40+2.0 0.5 Balance 12.75 140 3.7 47
CuW(65) 35+2.0 0.5 Balance 13.3 155 3.9 44
CuW(70) 30+2.0 0.5 Balance 13.8 175 4.1 42 790
CuW(75) 25+2.0 0.5 Balance 14.5 195 4.5 38 885
CuW(80) 20+2.0 0.5 Balance 15.15 220 5 34 980
CuW(85) 15+2.0 0.5 Balance 15.9 240 5.7 30 1080
CuW(90) 10+2.0 0.5 Balance 16.75 260 6.5 27 1160

tungsten copper alloy plate

Introduction of tungsten copper:

We are supplier specialized in manufacturing tungsten copper alloy. Tungsten copper alloy has high plasticity and high conductivity. Our tungsten copper alloy rods are processed by high purity of tungsten powder, copper powder and isostatic techniques. Both tungsten copper’ electrical and thermal conductivity are good. Moreover, it owns low expansion and high temperature resistance.
